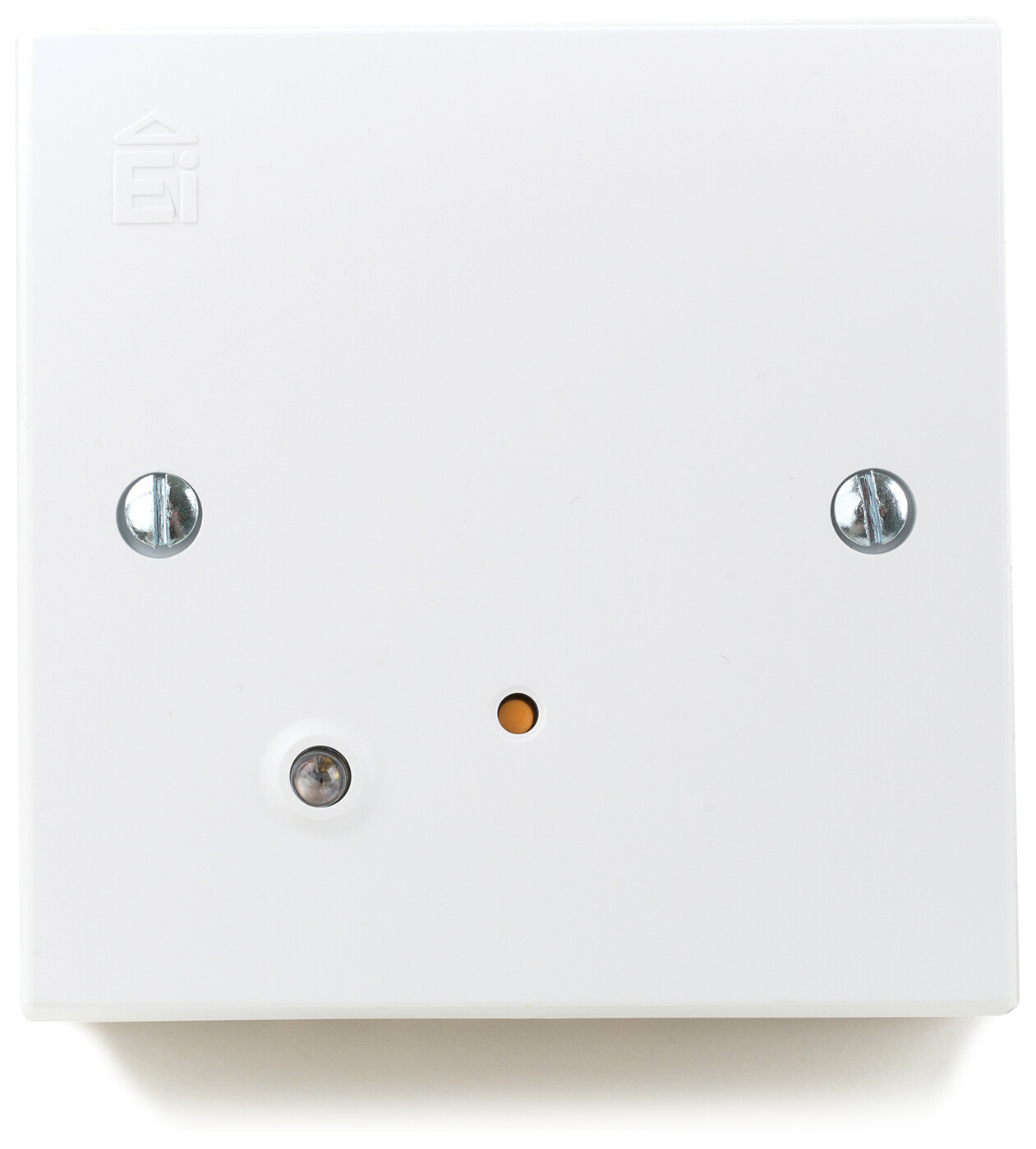

The module is powered either directly from the Panel System or from an external source.

Features

• Creates a two way communication between Aico alarms and a panel system

• Uses RadioLINK wireless interconnection technology to connect with Aico alarms and is hard wired into the Panel system

• Powered directly from the Panel system

Operation

• On receiving a Volt-free switched hardwired signal from the panel, the module will transmit a RadioLINK alarm signal to activate the alarms in the system

• If a fire alarm has activated, the module will recognise the signal as a fire, and switch the relevant contacts to activate the panel

• If a Carbon Monoxide alarm has activated, the module will recognise the signal as a Carbon Monoxide leak and switch the relevant contacts to activate the panel

Technical Spec

Eliminate the need for any cabling between the Ei413 and the smoke/heat/CO alarms used in the system.

The Ei413 is conformant to EN300220-1 (RF Performance) in accordance with EN300220-2 and EN301489-1 (EMC) referencing EN301489-3.

The unit is powered from the alarm panel and requires 11 to 30VDC. Unit current rating: 15mA (Standby), 60mA (Alarm Max).

The unit has three sets (Normally Open, Normally Closed and Common) of built-in wiring contacts for connection to the panel (rated at 30V @1 Amp). On the contacts closing, the unit will (dependant on which set of contacts are connected) indicate a fire, CO leak or fault to the panel. The unit also has a Normally Open volt-free set of contacts to link from the panel to it, so if the panel is activated, the unit will transmit a RadioLINK signal to the alarms in the system to activate them (they will sound).

Radio frequency: 868MHz band in accordance with R&TTE Directive 1999/5/EC – this band has been designed for use with security products and only allows a 1% duty cycle, so continuous transmission and interference from external sources is extremely remote and would be illegal.

Up to 12 RadioLINK units can be used in one system. Range may be a limiting factor.

RF Range: The type of building will be the major limiting factor e.g. the number and type of walls/ceilings that the radio signal has to pass through. As a guide, 30m should be the maximum distance between any of the RadioLINK units in the system.

Designed for surface mounting or can be fitted into certain alarm panels provided the casing is not a metallic construction which may restrict RF signals.

Dimensions: 88mm x 88mm x 28mm.

Weight: 150g.

Replace By 2032
